Product Explanation
The Locking Volar Distal Radius Plate, Standard 2.7/3.5 mm is an orthopedic fixation plate intended to form part of a compatible internal fixation construct in the distal radius region.
A simplified fixation concept can be represented as:
Distal Radius → Volar Locking Plate → Compatible Fixation Screws → Internal Fixation Construct
The product designation identifies the plate as a:
Volar Distal Radius Plate
with a:
Standard
configuration.
The plate is selected and positioned according to the anatomical side, fracture configuration, bone anatomy, fixation requirements, surgical plan, approved surgical technique, and Instructions for Use.
According to the supplied product data, the plate is available in:
Left / Right
versions.
The product incorporates:
4 Head Holes
and is available with:
3 / 4 / 5 / 6 / 8 Shaft Holes
providing several plate configurations within the same product family.
Product Components and Design
- Volar Plate Body
The implant consists of a metallic plate body with a broadened distal section and an elongated shaft.
The product is specifically identified as:
Locking Volar Distal Radius Plate, Standard
indicating a volar plate configuration intended for use within a compatible distal radius fixation system.
The exact anatomical contour, plate curvature, plate-to-bone interface, dimensions, and approved positioning should be confirmed from the manufacturer’s technical drawings and surgical technique.
- Distal Head Section
The plate incorporates a widened distal head containing multiple fixation openings.
According to the supplied product data:
Head Holes: 4
These represent the listed head-hole configuration for the product.
The image visually shows additional opening geometry in the distal region; therefore, the exact interpretation of the stated 4 head holes, as well as the function of each visible opening, should be confirmed from the official technical documentation.
- Shaft Section
The elongated shaft is available with five listed hole configurations:
3 Holes
4 Holes
5 Holes
6 Holes
8 Holes
This provides multiple shaft configurations within the product family.
The exact plate length corresponding to each shaft-hole option is not provided in the supplied image.
- Multiple Fixation Opening Geometries

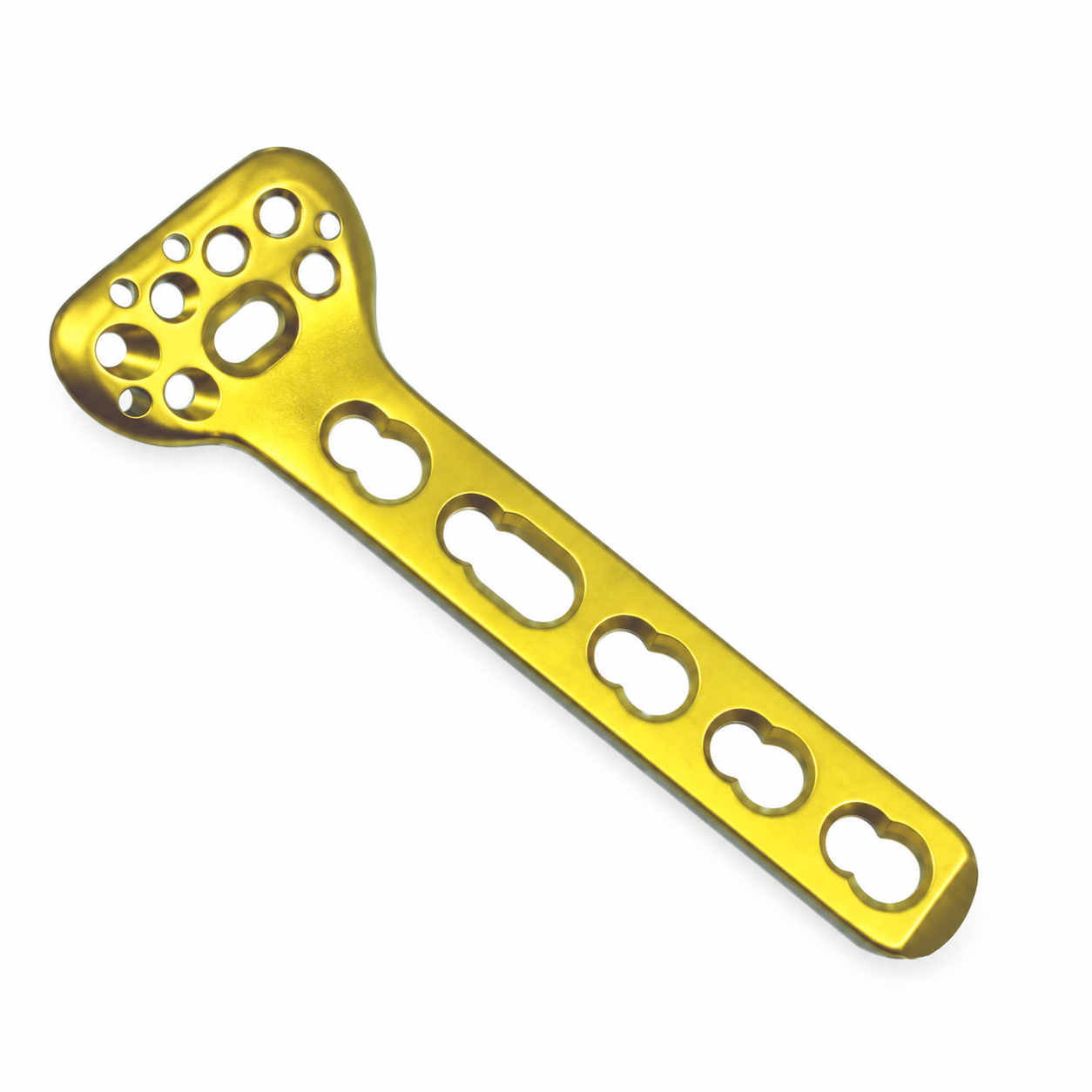

The supplied product image shows several opening geometries within both the distal portion and the shaft.
These include circular and elongated openings.
The specific technical function of each opening—such as locking fixation, conventional fixation, compression, adjustment, or positioning—is not defined by the supplied data and should be confirmed from the approved surgical technique.
- Left and Right Configurations
The plate is available in:
Left / Right
alignment options.
This supports side-specific implant selection according to the anatomical side being treated.
The exact differences in contour between the Left and Right versions should be confirmed from the manufacturer’s technical drawings.
- Standard Configuration
The product is specifically designated:
Standard
within the product name.
This indicates a distinct configuration within the manufacturer’s volar distal radius plate family.
Any differences between the Standard version and other possible plate variants should be determined from the official product catalog rather than assumed from the image alone.
- Material Options
According to the supplied product data, the plate is available in:
SS316L
and
Titanium
The exact Titanium alloy or grade is not provided in the supplied image and should be confirmed from the manufacturer’s material specification.
Intended Use
The Locking Volar Distal Radius Plate, Standard 2.7/3.5 mm is designed for use as part of a compatible orthopedic fixation system involving the distal radius, according to the approved indications, surgical technique, and Instructions for Use.
The product designation identifies it as a volar distal radius plate.
Potential applications may involve internal fixation of the distal radius where this plate configuration is included within the manufacturer’s approved indications.
The exact fracture patterns, classifications, anatomical indications, surgical approach, screw configuration, contraindications, and patient selection criteria should be confirmed from the official product documentation.
Plate selection may depend on factors including:
- Anatomical side.
- Distal radius anatomy.
- Fracture location and configuration.
- Required fixation construct.
- Required shaft-hole configuration.
- Required plate length.
- Bone dimensions.
- Bone quality.
- Compatible screw selection.
- Compatible instrumentation.
- Surgical approach.
- Preoperative planning.
- Intraoperative assessment.
The implant should be selected and implanted by a qualified orthopedic surgeon in accordance with the approved surgical technique and Instructions for Use.
Key Benefits
Volar Plate Configuration
The product is specifically identified as a:
Locking Volar Distal Radius Plate
providing a dedicated volar plate configuration within the compatible distal radius fixation system.
The exact approved clinical indications and biomechanical role should be confirmed from the official product documentation.
Left and Right Anatomical Options
The plate is available in:
Left / Right
configurations, supporting side-specific implant selection.
Four-Hole Head Configuration
According to the supplied product data:
Head Holes: 4
providing the listed distal head-hole configuration for this product family.
Five Shaft-Hole Options
The plate is available with:
3, 4, 5, 6, or 8 Shaft Holes
providing a relatively broad range of shaft configurations.
This can support selection of different plate configurations according to the required fixation construct and surgical plan.
Two Material Options
The plate is available in:
SS316L
and
Titanium
according to the supplied product information.
2.7/3.5 mm Fixation System
The product is identified as:
Locking Volar Distal Radius Plate, Standard 2.7/3.5 mm
indicating its association with a compatible 2.7/3.5 mm orthopedic fixation system.
The exact screw diameter assigned to individual head and shaft openings should be confirmed from the official technical documentation.
Multiple Product Variants
Based strictly on the supplied product data, the family includes:
- 2 alignment options: Left / Right
- 1 head-hole configuration: 4
- 5 shaft-hole options: 3 / 4 / 5 / 6 / 8
- 2 material options: SS316L / Titanium
If every shaft option were available in both alignments and both materials, this would represent up to 20 basic alignment × shaft × material combinations.
However, the supplied image does not confirm that all options can be combined freely. The exact number of commercially available product configurations should therefore be confirmed from the official Cat. No. table.
Technical Specifications
| Specification | Product Data |
| Product Name | Locking Volar Distal Radius Plate, Standard 2.7/3.5 mm |
| Product Category | Trauma – Radius |
| Product Type | Locking Orthopedic Fixation Plate |
| Plate Configuration | Volar – Standard |
| Anatomical Region | Distal Radius |
| System Size | 2.7/3.5 mm |
| Alignment | Left, Right |
| Head Holes | 4 |
| Shaft Hole Options | 3, 4, 5, 6, 8 |
| Materials | SS316L, Titanium |
| Potential Basic Configurations | Up to 20, subject to catalog confirmation |
| Cat. No. | Not provided |
| GTIN No. | Not provided |
| Plate Length | Not provided |
| Plate Width | Not provided |
| Plate Thickness | Not provided |
| Compatible Screw Details | Not provided |
| Screw Trajectories | Not provided |
| Titanium Grade | Not provided |
| Compatible Instrumentation | Not provided |
Technical Overview
Product Name: Locking Volar Distal Radius Plate, Standard 2.7/3.5 mm
Product Category: Trauma – Radius
Product Type: Locking Orthopedic Fixation Plate
Plate Type: Volar – Standard
Anatomical Region: Distal Radius
System: 2.7/3.5 mm
Alignment Options: Left and Right
Head Holes: 4
Shaft Hole Options: 3, 4, 5, 6, and 8
Material Options: SS316L and Titanium
Plate Geometry: Widened distal section with elongated shaft
Fixation Concept: Plate-and-screw internal fixation using a compatible orthopedic fixation system
Side-Specific Design: Yes — Left / Right
Configuration: Standard
Cat. No.: Not supplied
GTIN No.: Not supplied
Specific Titanium Grade: Not supplied
Plate Dimensions: Not supplied
Specific Screw Compatibility: Not supplied
Product Features
- Locking distal radius plate design.
- Identified as a Volar plate configuration.
- Identified as the Standard version.
- Intended for use within a compatible distal radius fixation system.
- Associated with a 2.7/3.5 mm fixation system according to the product name.
- Available in Left and Right configurations.
- Incorporates 4 head holes according to the supplied product data.
- Available with 3 shaft holes.
- Available with 4 shaft holes.
- Available with 5 shaft holes.
- Available with 6 shaft holes.
- Available with 8 shaft holes.
- Available in SS316L.
- Available in Titanium.
- Features a broadened distal plate section.
- Features an elongated shaft section.
- Includes multiple fixation openings.
- Includes circular fixation openings visible in the supplied image.
- Includes elongated openings visible in the supplied image.
- Supports side-specific implant selection.
- Provides five different shaft-hole configurations.
- Supports multiple possible plate-length configurations, although exact lengths are not supplied.
- Exact head-hole interpretation should be verified against the manufacturer’s technical drawing because the image visually shows multiple distal openings.
- Exact screw compatibility and hole-specific screw assignment should be confirmed from official technical documentation.
- Exact plate dimensions and thickness should be confirmed from the manufacturer’s technical drawings.
- Individual Cat. No. and GTIN No. should be added when the official product table is available.
- Approved indications, contraindications, and surgical technique should be confirmed from the manufacturer’s Instructions for Use (IFU).
