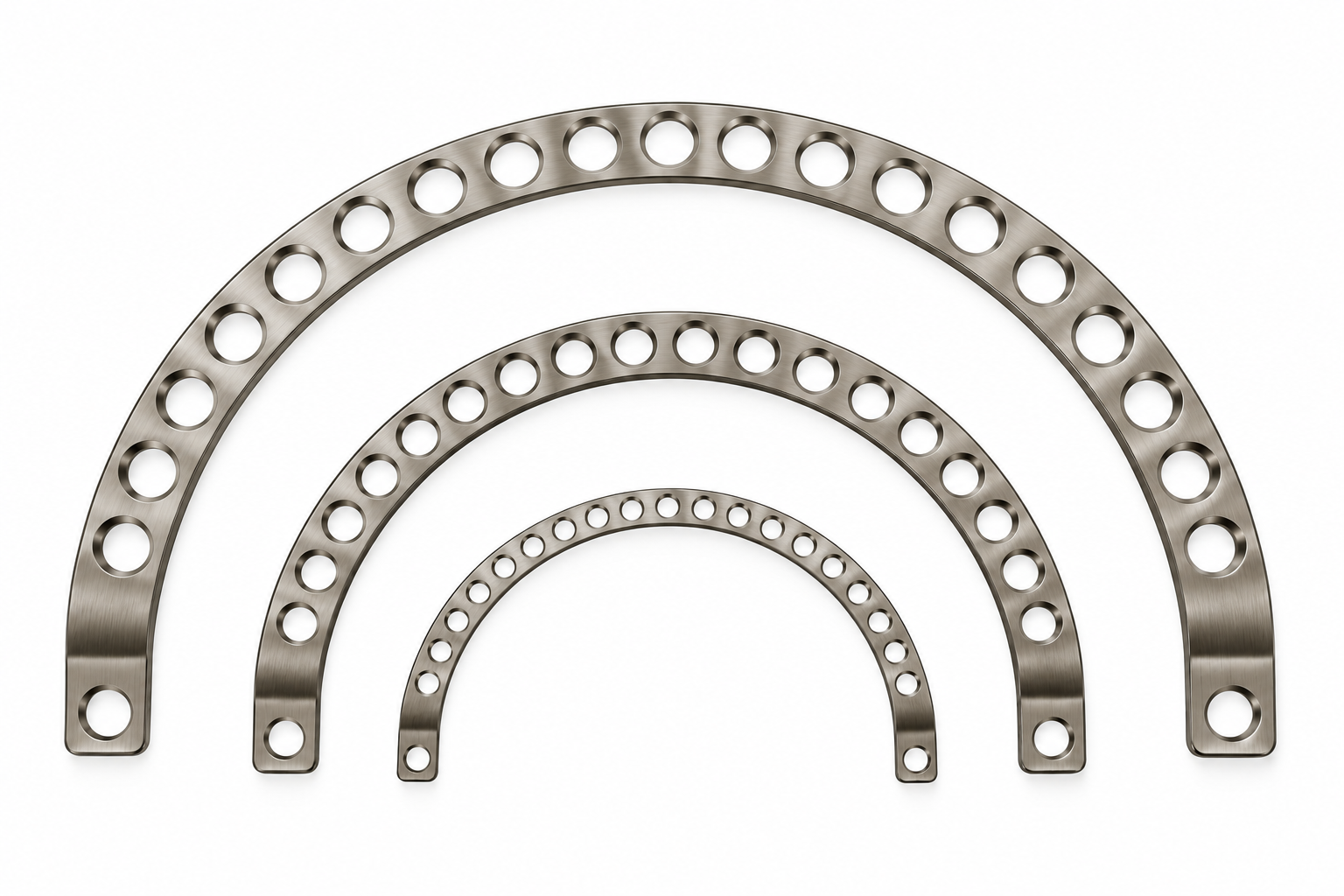

Pediatric Half Rings are structural components used within Pediatric Orthopedic External Fixation systems. They are designed with a Semi-Circular / Half-Ring Geometry to function as part of the External Fixator Frame used for bone fixation and reconstruction in pediatric orthopedic applications.
The design features multiple Connection / Fixation Holes distributed along the perimeter of the Half Ring, providing multiple attachment points for compatible components within the External Fixation system, such as Connecting Rods, Clamps, Wire Interfaces, or Pin Fixation Elements according to the system design and approved Surgical Technique.
According to the provided data, the product family is listed under the general reference:
Cat. No.: AMS 603.001
The range is available in two configurations listed as 90° and 120°. The availability of more than one Geometry Option allows the surgical team to select the appropriate Half Ring Configuration according to Pediatric Limb Anatomy, Fixation Site, Frame Geometry, and reconstruction requirements.
Each configuration carries an individual Cat. No. and GTIN Number, supporting Product Identification, Traceability, Surgical Set Preparation, Procurement, Inventory Management, and Stock Control.
Product Description
A Pediatric Half Ring is a semi-circular Structural External Fixation Component designed to function within External Skeletal Fixation systems intended for Pediatric Orthopedic applications.
It functions as part of the External Fixation Frame and is connected to fixation elements and other structural components within the system.
Its general role within the construct can be represented as follows:
Bone Fixation Element → Wire / Pin Interface → Connector / Rod → Pediatric Half Ring → External Fixation Frame
The semi-circular design provides an open geometry that allows different Frame Configurations compared with a Full Ring, according to clinical requirements and the fixation system being used.
Product Components and Design
- Semi-Circular Ring Body
The main structural body of the component, designed with a Half-Ring / Semi-Circular Geometry to function as a structural element within the External Fixation Frame.
- Multiple Connection Holes
The Half Ring features multiple holes distributed along its perimeter, providing Multiple Connection Points for compatible components.
Depending on the system design, these connection points may be used with:
- Connecting Rods
- Clamps
- Wire Interfaces
- Pin Fixation Components
- Other Modular Frame Components
- Open Half-Ring Geometry
The design is open and semi-circular, providing a configuration distinct from a Complete Circular Ring.
- Pediatric-Specific Configuration
The product is classified within Pediatric External Fixation Components and is intended for construction of Frames used in pediatric orthopedic applications according to the fixation system instructions.
- Configuration Options
The product family is available in:
90° and 120°
However, the provided table does not definitively specify whether these values represent an Arc Angle, Opening Angle, or another geometric classification. Therefore, they should be retained as Configuration Values as listed until confirmed by the official Technical Datasheet.
Product Use
Pediatric Half Rings are used within compatible Pediatric External Fixation systems to form part of the Fixation Frame around the target anatomical region.
Depending on the approved indications of the fixation system, they may be incorporated into applications such as:
- Pediatric External Fracture Fixation
- Bone Segment Stabilization
- Pediatric Orthopedic Reconstruction
- Modular / Circular External Fixation Constructs
- Limb Reconstruction Procedures
- Selected Deformity Correction applications when included within the official indications
Selection of the appropriate configuration depends on:
- Pediatric Limb Anatomy
- Anatomical Region
- Fixation Site
- Required Frame Geometry
- Position of Wires / Pins
- Bone Segment
- Preoperative Planning
- Intraoperative Frame Assembly
The Final External Fixation Construct should be determined by a Qualified Orthopedic Surgeon in accordance with the approved IFU and Surgical Technique.
Key Benefits
Pediatric External Fixation Design
Designed specifically as part of a Pediatric Orthopedic External Fixation system.
Semi-Circular Geometry
The Half Ring Design provides a semi-circular configuration that supports flexible construction of the External Fixation Frame.
Two Configuration Options
The range is available in:
90° | 120°
providing more than one Geometry Option within the fixation system.
Multiple Connection Points
Multiple Connection Holes allow compatible components to be attached at different positions along the ring.
Modular Frame Integration
The Half Rings can be integrated with compatible External Fixator components such as:
- Connecting Rods
- Clamps
- Wire Interfaces
- Pin Fixation Elements
Product Traceability
Each configuration has an individual product code and GTIN Number, supporting:
- Product Identification
- Product Traceability
- Procurement
- Inventory Management
- Stock Control
Technical Specifications
| Size / Configuration | Cat. No. | GTIN No. |
| 90° | AMS 603.001.090 | 6221361016521 |
| 120° | AMS 603.001.120 | 6221361016538 |
Technical Overview
Product Name: Pediatric Half Rings
Product Type: Pediatric Semi-Circular External Fixation Ring
Product Category: Pediatric Orthopedic External Fixation Component
General Cat. No.: AMS 603.001
Available Configurations: 90° / 120°
Number of Configurations: 2
Design: Semi-Circular Half Ring with Multiple Connection Holes
System Application: Pediatric External Fixation Construct
Functional Role: Structural External Fixator Frame Component
Identification: Individual Cat. No. & GTIN No. for each configuration
Product Features
- Pediatric Half-Ring External Fixation Design.
- Intended for compatible Pediatric Orthopedic External Fixation systems.
- Semi-Circular Open Geometry.
- Features Multiple Connection / Fixation Holes.
- Available in 2 Configurations: 90° and 120°.
- Provides multiple options during Pediatric Frame Planning.
- Supports construction of Modular / Circular External Fixation Constructs.
- Can be integrated with compatible Connecting Rods, Clamps, and Wire / Pin Fixation Elements.
- Supports Preoperative Frame Planning.
- Provides options during Intraoperative Frame Assembly.
- General Cat. No.: AMS 603.001.
- Individual Cat. No. for each configuration.
- Individual GTIN Number for each variant.
- Supports Product Traceability.
- Facilitates Procurement, Inventory Management, and Stock Control.
