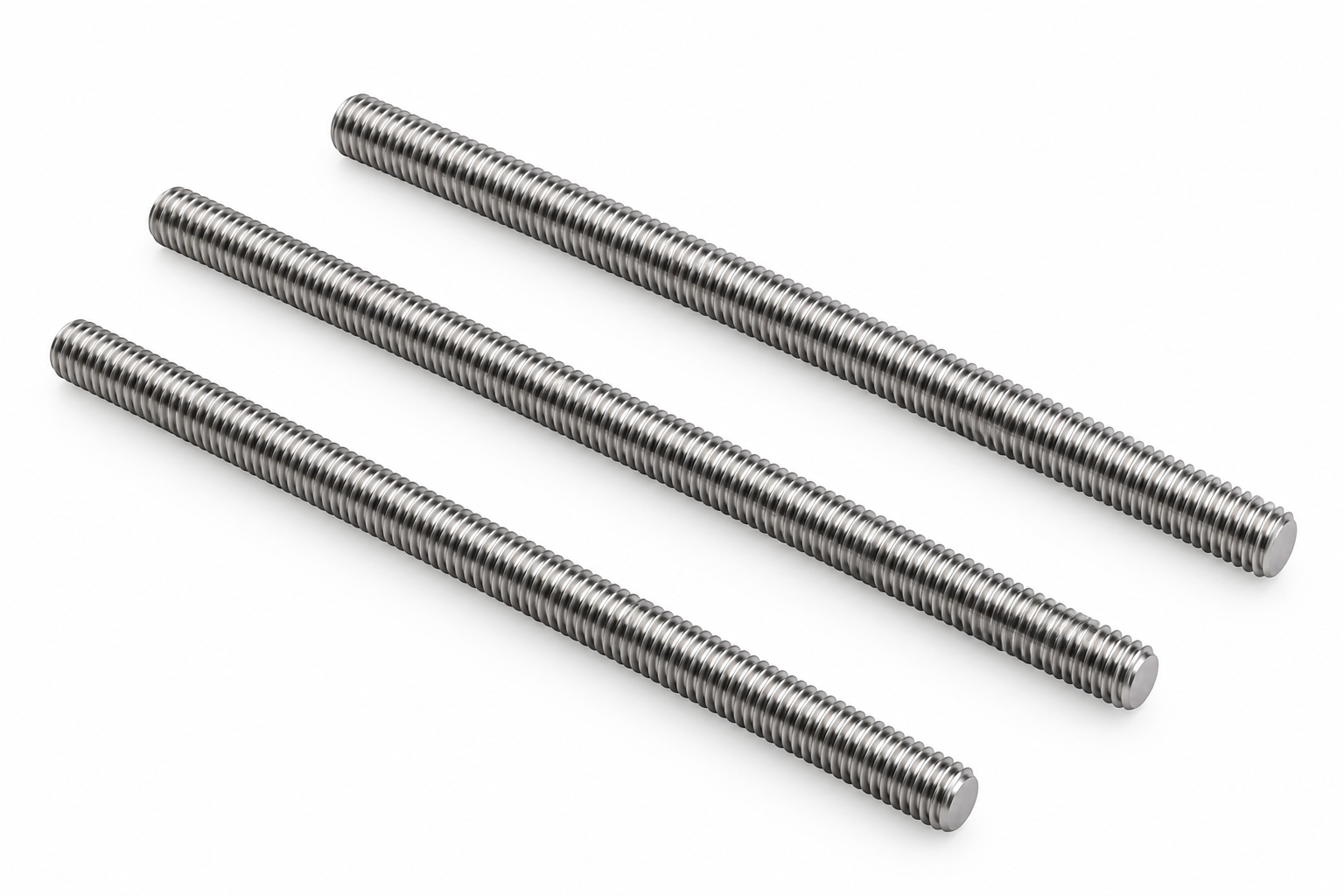

Pediatric Rods are structural components used within Pediatric Orthopedic External Fixation systems, functioning as Connecting / Structural Rod Components to connect and arrange External Fixator components within the required Frame Construct according to the surgical plan and system design.
The range provides a broad selection of lengths, starting from 40 mm and extending to 180 mm, giving the surgical team multiple options during Preoperative Frame Planning and Intraoperative Frame Assembly, particularly where different limb and bone dimensions must be accommodated in Pediatric Orthopedic applications.
According to the provided data, the product family is listed under the general reference:
Cat. No.: AMS 603.005
The range is available in ten lengths: 40, 50, 60, 70, 80, 90, 100, 120, 150, and 180 mm. This variety supports selection of the appropriate Rod Length according to Pediatric Anatomy, Distance Between Frame Components, Fixation Site, Required Frame Geometry, and compatibility with other components of the External Fixation system.
Each length carries an individual Cat. No. and GTIN Number, supporting Product Identification, Product Traceability, Surgical Set Preparation, Procurement, Inventory Management, and Stock Control.
Product Description
A Pediatric Rod is a Structural Connecting Component used within Pediatric External Skeletal Fixation systems to connect components of the Fixator Frame and establish the required geometry around the target anatomical region.
Its general role within the construct can be represented as follows:
Ring / Half Ring / Frame Component → Connector → Pediatric Rod → External Fixator Component
The Rod is selected according to the required distance between Frame Components and the type of surgical Construct.
Product Components and Design
- Rod Body
The main longitudinal body of the component, functioning as a structural element between components of the External Fixator.
- Connection Surface
The product features a Threaded / Ridged Geometry extending along the Rod, forming part of the component’s Connection Design.
However, the provided data do not specify:
- Thread Diameter
- Thread Pitch
- Thread Standard
- Thread Profile
Therefore, these specifications should not be stated without reference to the official Technical Datasheet.
- Proximal Connection End
One end of the Rod used for connection with compatible components or Connectors within the fixation system.
- Distal Connection End
The opposite end, which completes the Structural Connection with other components of the External Fixator Construct.
- Length-Specific Configuration
The range is available in ten lengths:
40 / 50 / 60 / 70 / 80 / 90 / 100 / 120 / 150 / 180 mm
providing a broad selection of Rod Length options.
Product Use
Pediatric Rods are used within compatible Pediatric Orthopedic External Fixation systems as structural connecting elements between Fixator components.
Depending on the fixation system design and approved indications, they may be incorporated into applications such as:
- Pediatric External Fracture Fixation
- Pediatric Bone Segment Stabilization
- Modular External Fixation Constructs
- Circular External Fixation Systems
- Pediatric Orthopedic Reconstruction
- Limb Reconstruction Procedures
- Connection of Rings, Half Rings, and other structural components within the Fixator Frame
Selection of the appropriate Rod Length depends on:
- Pediatric Limb Anatomy
- Anatomical Region
- Distance Between Frame Components
- Fixation Site
- Ring / Frame Position
- Required Frame Clearance
- Construct Geometry
- Preoperative Planning
- Intraoperative Frame Assembly
The product should be used by a Qualified Orthopedic Surgeon in accordance with the applicable IFU and Assembly Instructions of the fixation system.
Key Benefits
Pediatric-Specific Product Family
The product is classified within a dedicated Pediatric External Fixation product family.
Wide Length Range
The range extends from:
40 mm to 180 mm
providing multiple options during Frame Construction.
Ten Length Configurations
The product family includes 10 Configurations, providing the surgical team with greater flexibility when selecting the appropriate Rod.
Structural Frame Connection
The Rods function as Connecting Elements between compatible External Fixator components.
Modular Frame Integration
Depending on system compatibility, they can be integrated with components such as:
- Pediatric Rings
- Pediatric Half Rings
- Pediatric C-Rings
- Clamps
- Connecting Components
- Other Compatible External Fixation Elements
Frame Planning Flexibility
The multiple length options support:
- Preoperative Frame Planning
- Component Spacing
- Construct Assembly
- Intraoperative Configuration Selection
Product Traceability
Each length has an individual Cat. No. and GTIN Number to support:
- Product Identification
- Product Traceability
- Procurement
- Inventory Management
- Stock Control
Technical Specifications
| Length | Cat. No. | GTIN No. |
| 40 mm | AMS 603.005.040 | 6221361016545 |
| 50 mm | AMS 603.005.050 | 6221361016552 |
| 60 mm | AMS 603.005.060 | 6221361016569 |
| 70 mm | AMS 603.005.070 | 6221361016576 |
| 80 mm | AMS 603.005.080 | 6221361016583 |
| 90 mm | AMS 603.005.090 | 6221361016590 |
| 100 mm | AMS 603.005.100 | 6221361016606 |
| 120 mm | AMS 603.005.120 | 6221361016613 |
| 150 mm | AMS 603.005.150 | 6221361016620 |
| 180 mm | AMS 603.005.180 | 6221361016637 |
Technical Overview
Product Name: Pediatric Rods
Product Type: Pediatric External Fixation Connecting Rod
Product Category: Pediatric Orthopedic External Fixation Component
General Cat. No.: AMS 603.005
Available Lengths: 40 / 50 / 60 / 70 / 80 / 90 / 100 / 120 / 150 / 180 mm
Length Range: 40–180 mm
Number of Configurations: 10
Functional Role: Structural Connection between External Fixator Components
System Application: Pediatric Modular / Circular External Fixation
Identification: Individual Cat. No. & GTIN No. for each length
Product Features
- Pediatric External Fixation Rod Design.
- Intended for compatible Pediatric Orthopedic External Fixation systems.
- Functions as a Structural Connecting Component.
- Available in 10 Length Configurations.
- Wide Length Range from 40 to 180 mm.
- Provides multiple options for short, medium, and longer spacing requirements within the Frame.
- Supports Preoperative Frame Planning.
- Provides flexibility during Intraoperative Frame Assembly.
- Can be integrated with compatible Pediatric Rings, Half Rings, C-Rings, and other system components.
- Supports adjustment of Component Spacing according to Construct Design.
- General Cat. No.: AMS 603.005.
- Individual Cat. No. for each length.
- Individual GTIN Number for each configuration.
- Supports Product Traceability.
- Facilitates Procurement, Inventory Management, and Stock Control.
