Spine Rod

The Spine Rod (Cat. No. AMS 504.060.000) is a titanium rod component presented in the supplied catalog as a Spine ROD. The product features a straight, elongated cylindrical geometry and is offered in multiple listed lengths for selection within compatible spinal fixation constructs.

According to the supplied catalog image, the visible product range extends from 40 mm to 500 mm. Configurations from 40 mm through 400 mm are listed in regular 10 mm increments, followed by separately listed 450 mm and 500 mm configurations. The supplied image therefore contains 39 visible configurations.

The different rod lengths provide multiple dimensional options for construct planning and selection according to the applicable surgical configuration. The appropriate length should be selected based on the compatible fixation system, surgical requirements, construct dimensions, and the manufacturer’s applicable technical documentation.

Each visible configuration has its own Cat. No. and GTIN No., supporting accurate product identification, product traceability, procurement, inventory management, and stock control.

Material: Titanium
General Cat. No.: AMS 504.060.000
Product Designation: Spine Rod
Product Type: Spine Rod

Product Explanation

The Spine Rod is an elongated rod component designed for integration within a compatible spinal fixation construct.

Its straight cylindrical geometry provides the principal longitudinal rod structure shown in the supplied product image.

A simplified construct concept can be represented as:

Spinal Fixation Site → Spine Rod → Compatible Fixation Components → Spinal Fixation Construct

The supplied catalog image does not identify specific compatible screws, connectors, hooks, or other fixation components. Therefore, no specific component compatibility has been inferred.

Product Components and Design

1. Titanium Rod Body

The principal product structure is identified in the catalog as being manufactured from Titanium.

The supplied image does not specify the titanium alloy grade or material standard.

2. Straight Cylindrical Geometry

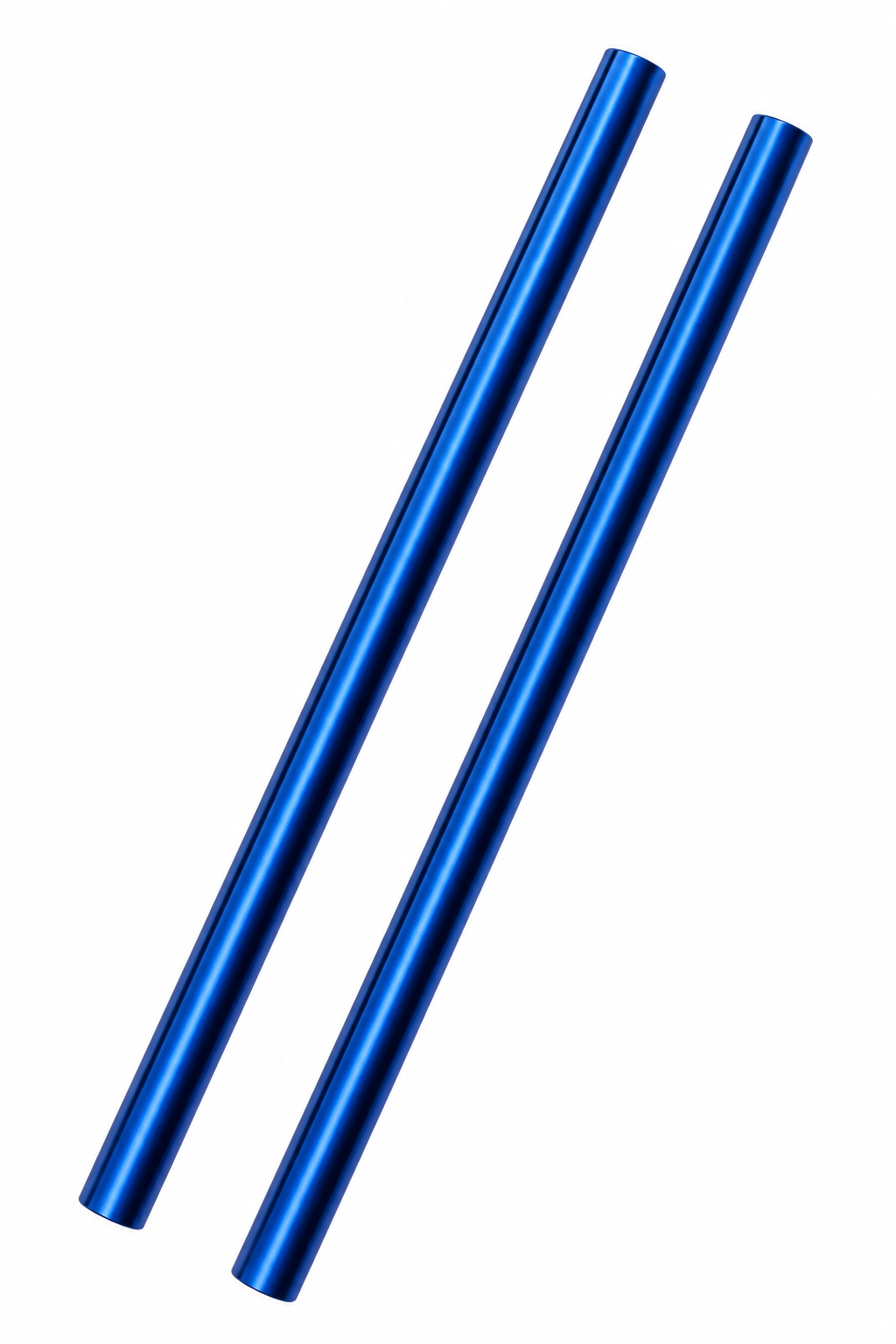

The product image shows an elongated, straight rod with a cylindrical external profile.

The supplied catalog does not provide:

• Rod diameter
• Cross-sectional dimensions
• Dimensional tolerances
• Mechanical properties

3. Elongated Rod Profile

The rod is available in multiple lengths, allowing selection of different rod dimensions for compatible spinal fixation constructs.

4. Rod Ends

The supplied product image shows defined terminal ends at both ends of the rod.

Specific end geometry, machining details, chamfers, radii, or finishing specifications are not provided in the visible catalog data.

5. Listed Length Configurations

The supplied image visibly lists:

40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 140 / 150 / 160 / 170 / 180 / 190 / 200 / 210 / 220 / 230 / 240 / 250 / 260 / 270 / 280 / 290 / 300 / 310 / 320 / 330 / 340 / 350 / 360 / 370 / 380 / 390 / 400 / 450 / 500 mm

for a total of 39 visible configurations.

The sequence is regular in 10 mm increments from 40 mm through 400 mm. The 410–440 mm configurations are not visible in the supplied image, while 450 mm and 500 mm are separately listed.

Intended Use

The Spine Rod is intended for use as a rod component within compatible spinal fixation systems, according to the manufacturer’s approved indications, Surgical Technique, and Instructions for Use.

The supplied catalog image does not specify particular anatomical levels, pathologies, surgical approaches, patient populations, or clinical indications. These details should therefore be verified against the applicable manufacturer-controlled documentation.

The implant should be selected and implanted by a qualified surgeon according to the manufacturer’s approved Surgical Technique and Instructions for Use.

Key Benefits

Titanium Material

The supplied catalog identifies the product material as:

Material: Titanium

No specific titanium alloy grade is provided in the visible catalog information.

Broad Length Selection

The supplied image provides multiple rod length options ranging from:

40 mm to 500 mm

10 mm Length Progression

The visible configurations progress in regular:

10 mm increments from 40 mm through 400 mm

Additional configurations of 450 mm and 500 mm are separately listed.

Multiple Visible Configurations

The supplied image contains:

39 visible configurations

This includes 37 configurations from 40–400 mm and two additional configurations at 450 mm and 500 mm.

Straight Rod Design

The product image shows a straight, elongated cylindrical rod geometry suitable for its role as a rod component within a compatible spinal fixation construct.

Product Traceability

Each visible configuration has a dedicated Cat. No. and GTIN No., supporting:

• Product identification
• Product traceability
• Surgical set preparation
• Procurement
• Inventory management
• Stock control

Configuration-Specific Identification

The individual Cat. No. follows the visible catalog pattern corresponding to the listed rod length, providing configuration-specific product identification.

Technical Specifications

Length	Cat. No.	GTIN No.
40 mm	AMS 504.060.040T	6221361044272
50 mm	AMS 504.060.050T	6221361044289
60 mm	AMS 504.060.060T	6221361044296
70 mm	AMS 504.060.070T	6221361044302
80 mm	AMS 504.060.080T	6221361044319
90 mm	AMS 504.060.090T	6221361044326
100 mm	AMS 504.060.100T	6221361044333
110 mm	AMS 504.060.110T	6221361044340
120 mm	AMS 504.060.120T	6221361044357
130 mm	AMS 504.060.130T	6221361044364
140 mm	AMS 504.060.140T	6221361044371
150 mm	AMS 504.060.150T	6221361044388
160 mm	AMS 504.060.160T	6221361044395
170 mm	AMS 504.060.170T	6221361044401
180 mm	AMS 504.060.180T	6221361044418
190 mm	AMS 504.060.190T	6221361044425
200 mm	AMS 504.060.200T	6221361044432
210 mm	AMS 504.060.210T	6221361044449
220 mm	AMS 504.060.220T	6221361044456
230 mm	AMS 504.060.230T	6221361044463
240 mm	AMS 504.060.240T	6221361044470
250 mm	AMS 504.060.250T	6221361044487
260 mm	AMS 504.060.260T	6221361044494
270 mm	AMS 504.060.270T	6221361044500
280 mm	AMS 504.060.280T	6221361044517
290 mm	AMS 504.060.290T	6221361044524
300 mm	AMS 504.060.300T	6221361044531
310 mm	AMS 504.060.310T	6221361044548
320 mm	AMS 504.060.320T	6221361044555
330 mm	AMS 504.060.330T	6221361044562
340 mm	AMS 504.060.340T	6221361044579
350 mm	AMS 504.060.350T	6221361044586
360 mm	AMS 504.060.360T	6221361044593
370 mm	AMS 504.060.370T	6221361044609
380 mm	AMS 504.060.380T	6221361044616
390 mm	AMS 504.060.390T	6221361044623
400 mm	AMS 504.060.400T	6221361044630
450 mm	AMS 504.060.450T	6221361044647
500 mm	AMS 504.060.500T	6221361044654

Technical Overview

Product Name: Spine Rod

Material: Titanium

Product Type: Spine Rod

Product Category: Spinal Fixation Component

General Cat. No.: AMS 504.060.000

Catalog Designation: Spine ROD

Visible Listed Lengths: 40–500 mm

Length Increment: 10 mm from 40–400 mm; 450 mm and 500 mm separately listed

Number of Visible Configurations: 39

Design: Straight cylindrical rod

Functional Role: Rod component within compatible spinal fixation constructs

Anatomical Application: Spine

Identification: Individual Cat. No. and GTIN No. for each visible configuration

Product Features

• Spine Rod product designation.
• Manufactured from Titanium according to the catalog.
• General Cat. No.: AMS 504.060.000.
• Straight, elongated cylindrical rod geometry.
• Visible listed length range from 40 mm to 500 mm.
• Regular 10 mm increments from 40 mm through 400 mm.
• Additional 450 mm and 500 mm configurations.
• 39 visible configurations in the supplied image.
• Designed for integration within compatible spinal fixation constructs.
• Individual Cat. No. for every visible length.
• Individual GTIN No. for every visible configuration.
• Supports product identification and traceability.
• Supports procurement and inventory management.
• The supplied catalog does not specify rod diameter, titanium alloy grade, mechanical properties, surface treatment, or dimensional tolerances.

Technical Note

• The supplied catalog image identifies the product as Spine ROD and specifies Titanium as the material.
• General Cat. No.: AMS 504.060.000.
• The image visibly contains 39 configurations.
• The visible sequence progresses from 40 mm to 400 mm in 10 mm increments.
• The 410 mm, 420 mm, 430 mm, and 440 mm configurations are not visible in the supplied image.
• 450 mm and 500 mm configurations are separately listed.
• No values for 410–440 mm have been assumed or generated.
• The supplied catalog does not specify:
  • Rod diameter
  • Titanium alloy grade
  • Mechanical properties
  • Surface treatment
  • Coating
  • Dimensional tolerances
  • Manufacturing process
  • Specific compatible fixation components
  • Specific clinical indications
• The visible Cat. No. sequence follows the apparent pattern AMS 504.060.[length]T for the listed configurations.
• No duplicate GTIN is apparent among the 39 visible rows.
• Any missing configurations or technical specifications should be verified against the Master Product List, ERP, Technical Datasheet, Surgical Technique, and IFU before publication.
• The supplied catalog image does not specify any additional technical parameters; therefore, no unsupported values have been inferred.
• Any unclear or unusual catalog data should be verified against the manufacturer’s controlled product database before publication.
