Pediatric Bolts are mechanical connection and fastening components used within Pediatric Orthopedic External Fixation systems. They are designed to assemble and connect compatible External Fixator Frame components within the required Fixation Construct.
The product incorporates a Threaded Bolt Geometry with a Bolt Head designed for engagement with a compatible fastening tool. The Bolt functions as part of the Mechanical Connection between system components during Frame Assembly and Component Positioning.
According to the provided product data, the range is listed under the general reference:
Cat. No.: AMS 603.016
The product is available in two length options: 12 mm and 16 mm, allowing selection of the appropriate Bolt Configuration according to Component Thickness, Connection Geometry, Required Engagement Length, and the assembly requirements of the Pediatric External Fixator.
Each length carries an individual Cat. No. and GTIN Number, supporting Product Identification, Product Traceability, Surgical Set Preparation, Procurement, Inventory Management, and Stock Control.
Pediatric Bolts should only be used with compatible components and Connection Interfaces and in accordance with the approved IFU and Assembly Instructions of the fixation system.
Product Description
A Pediatric Bolt is a Mechanical Fastening Component used within Pediatric External Skeletal Fixation systems to assemble and connect components of the Fixator Frame.
Its general role can be represented as follows:
Pediatric Frame Component → Bolt → Connecting Component → External Fixator Construct
The Threaded Section provides Mechanical Engagement with a compatible interface, while the Bolt Head allows application of the required fastening action using an appropriate compatible tool.
Product Components and Design
- Bolt Head
The upper section of the Bolt used during Assembly with a compatible tool.

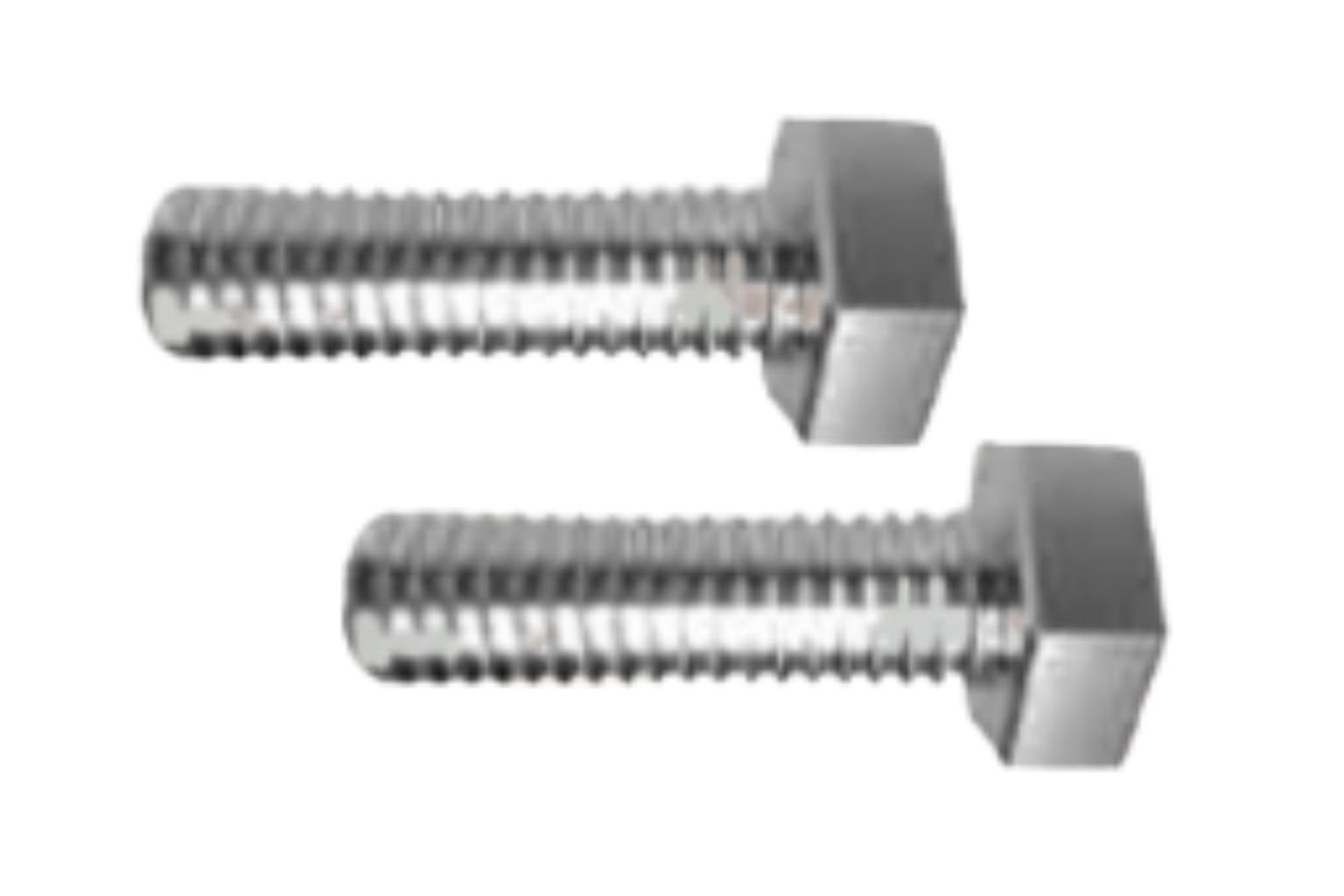

The product image shows a Head with multiple external surfaces; however, the specific Tool Interface and exact dimensions are not specified in the provided table.
- Threaded Shaft
The threaded section of the Bolt designed to provide Mechanical Engagement with a compatible Connection Interface.
The currently available data do not specify:
- Thread Diameter
- Thread Pitch
- Thread Standard
- Thread Length
Therefore, these specifications should not be stated without reference to the official Technical Datasheet.
- Bolt Body
The longitudinal body connecting the Head to the Threaded Section and forming part of the product’s overall configuration.
- Distal Threaded End
The threaded terminal section that engages with the corresponding component during Mechanical Assembly.
- Length-Specific Configuration
The product family is available in:
- 12 mm
- 16 mm
according to the provided table.
Product Use
Pediatric Bolts are used within compatible Pediatric Orthopedic External Fixation systems to connect and assemble Fixator components.
Depending on the fixation system design, they may be used with:
- Pediatric Rings
- Pediatric Half Rings
- Pediatric C-Rings
- Pediatric Rods
- Pediatric Slotted Rods
- Pediatric Square Sockets
- Pediatric Support Components
- Other compatible Pediatric External Fixation Components
Selection of the appropriate Bolt Length depends on:
- Component Thickness
- Connection Geometry
- Required Thread Engagement
- Frame Configuration
- Pediatric Fixator Component Compatibility
- Intraoperative Assembly Requirements
The product should be used only with compatible components and in accordance with the applicable IFU and Assembly Instructions of the fixation system.
Key Benefits
Pediatric-Specific Fixation Component
Designed as part of a product family intended for Pediatric External Fixation systems.
Two Length Options
The product is available in:
12 mm | 16 mm
providing two options during Frame Assembly.
Mechanical Fastening Function
Functions as a Fastening Component for connecting compatible components within the External Fixator Construct.
Threaded Connection
The Threaded Shaft provides a connection interface with compatible components according to the fixation system design.
Modular Frame Integration
Can be integrated within a Pediatric Modular External Fixation System with compatible Rods, Rings, Sockets, Supports, and other components.
Product Traceability
Each length carries an individual Cat. No. and GTIN Number to support:
- Product Identification
- Product Traceability
- Procurement
- Inventory Management
- Stock Control
Technical Specifications
| Length | Cat. No. | GTIN No. |
| 12 mm | AMS 603.016.012 | 6221361016767 |
| 16 mm | AMS 603.016.016 | 6221361016774 |
Technical Overview
Product Name: Pediatric Bolts
Product Type: Pediatric External Fixation Connection Bolt
Product Category: Pediatric Orthopedic External Fixation Component
General Cat. No.: AMS 603.016
Available Lengths: 12 / 16 mm
Length Range: 12–16 mm
Number of Configurations: 2
Design: Threaded Bolt with Fastening Head
Functional Role: Mechanical Fastening & Connection of compatible Pediatric External Fixator Components
System Application: Pediatric Modular External Fixation
Identification: Individual Cat. No. & GTIN No. for each length
Product Features
- Pediatric External Fixation Bolt Design.
- Intended for compatible Pediatric Orthopedic External Fixation systems.
- Functions as a Mechanical Fastening Component.
- Incorporates a Threaded Shaft.
- Available in 2 Length Configurations.
- Available lengths: 12 and 16 mm.
- Supports Frame Assembly and Component Connection.
- Helps connect and arrange components of the Pediatric External Fixator.
- Can be used with compatible Rings, Rods, Sockets, and Supports.
- Supports Intraoperative Construct Assembly.
- General Cat. No.: AMS 603.016.
- Individual Cat. No. for each length.
- Individual GTIN Number for each configuration.
- Supports Product Identification and Traceability.
- Facilitates Procurement, Inventory Management, and Stock Control.
