Threaded Sockets are used within compatible Orthopedic External Fixation systems as connecting elements between Fixator components.
Depending on the fixation system design, they may be integrated with:
- Threaded Rods
- Connecting Rods
- Connection Plates
- Bolts
- Clamps
- Rings / Arches
- Other compatible External Fixation Components
Selection of the appropriate Socket Length depends on:
- Frame Geometry
- Component Spacing
- Threaded Interface Compatibility
- Required Connection Depth
- Fixator Configuration
- Anatomical Region
- Preoperative Frame Planning
- Intraoperative Assembly
The product should be used in accordance with the applicable Assembly Instructions and IFU of the fixation system.
Key Benefits
Threaded Connection Interface
The design provides a Threaded Interface for integration with compatible components within the External Fixation Construct.
Two Length Options
The product is available in:
20 mm and 40 mm
providing more than one option during Component Connection.
Compact Connector Design
The compact Socket Design makes it suitable for use within Modular Frame Assemblies requiring a short and defined Connecting Component.
Modular Fixator Integration
Designed to function with compatible External Fixation components within the fixation system.
Frame Assembly Flexibility
The availability of more than one length supports:
- Component Positioning
- Frame Layout
- Connection Planning
- Construct Assembly
Product Traceability
Each variant carries an individual Cat. No. and GTIN Number to support:
- Product Identification
- Product Traceability
- Procurement
- Inventory Management
- Stock Control
Technical Specifications
| Length | Cat. No. as Listed in the Table | GTIN No. |
| 20 mm | AMS 602.031.02 | 6221361015371 |
| 40 mm | AMS 602.031.04 | 6221361015395 |
Technical Overview

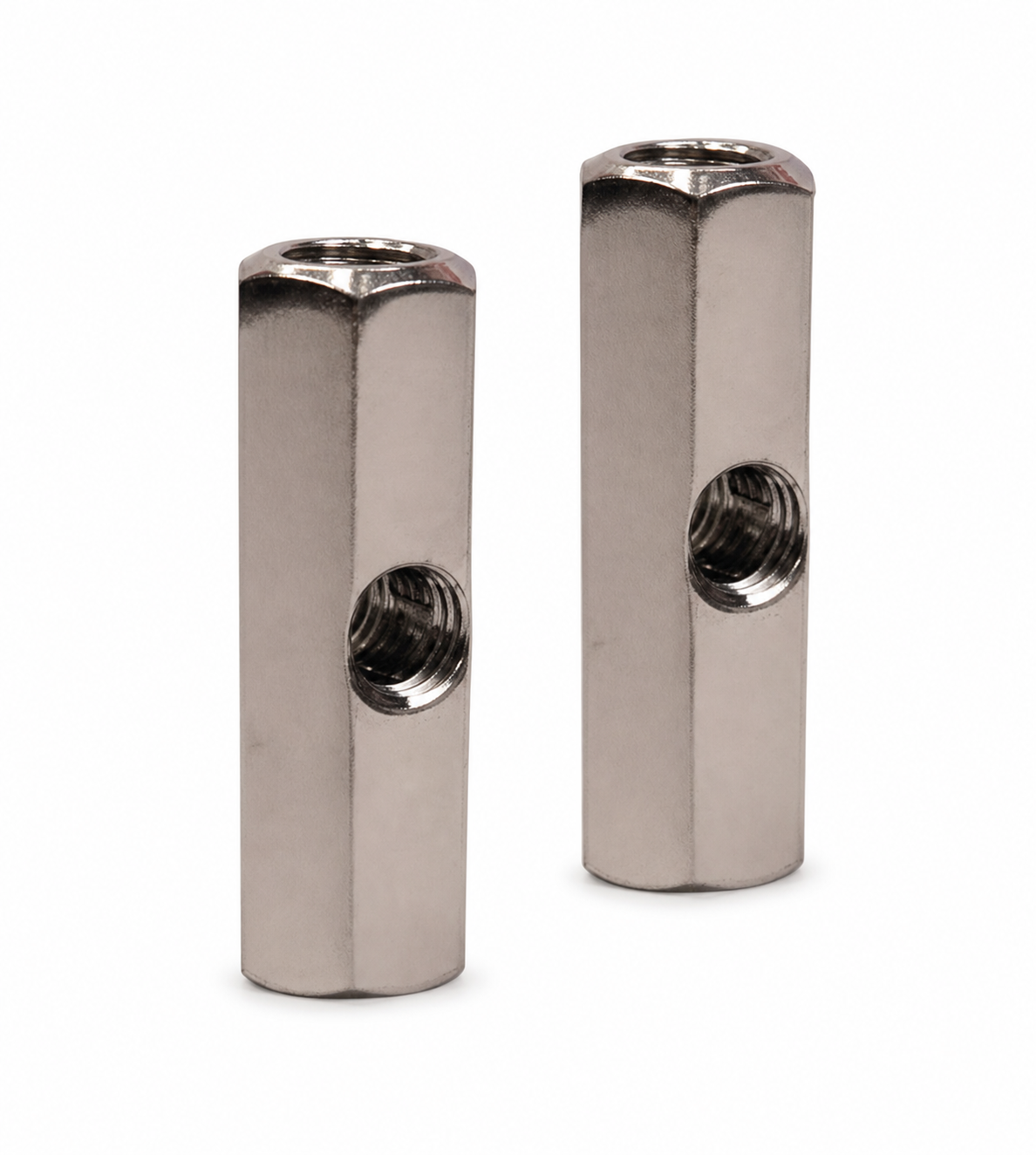

Product Name: Threaded Sockets
Product Type: External Fixation Threaded Connector / Socket
Product Category: Orthopedic External Fixation Component
General Cat. No.: AMS 602.031
Available Lengths: 20 / 40 mm
Length Range: 20–40 mm
Number of Configurations: 2
Design Concept: Threaded Socket with Side Connection Feature
Functional Role: Mechanical Connection between compatible External Fixator Components
System Application: Modular External Fixation
Identification: Individual Cat. No. & GTIN No. for each length
Product Features
- Threaded Socket External Fixation Design.
- Intended for compatible Orthopedic External Fixation systems.
- Functions as a Mechanical Connecting Component.
- Incorporates a Threaded Interface.
- Features a Side Connection Feature within the product geometry.
- Available in 2 Length Configurations.
- Available lengths: 20 and 40 mm.
- Provides different options during Frame Assembly.
- Supports Component Positioning within the Fixator Construct.
- Can be integrated with compatible Rods, Bolts, and Connecting Components.
- Supports Preoperative Frame Planning.
- General Cat. No.: AMS 602.031.
- Individual Cat. No. for each length as listed in the table.
- Individual GTIN Number for each configuration.
- Supports Product Traceability, Procurement, Inventory Management, and Stock Control.
